HAND ERGOMETER

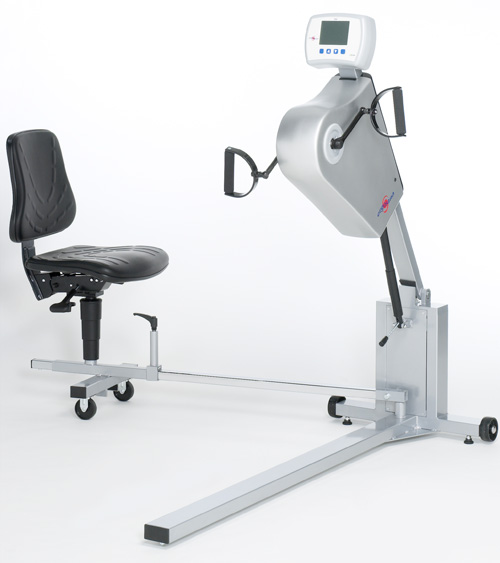

SanaSedeo 1000
Hand ergometer for mobility-impaired patients
ERGOSANA’s hand ergometer has been designed for mobility-impaired patients with its construction being based on the ERGOSANA bicycle model SanaBike 1000. The seat can easily be slid away to accommodate paraplegic patients.
Highly configurable
Quiet mechanism
High load precision
Use with seat or wheelchair
Optimized ergometer training for disabled persons.
The SanaSedeo 1000 is especially designed for the training of disabled persons. It closes a gap in our range of high-end bicycle and couch ergometers.

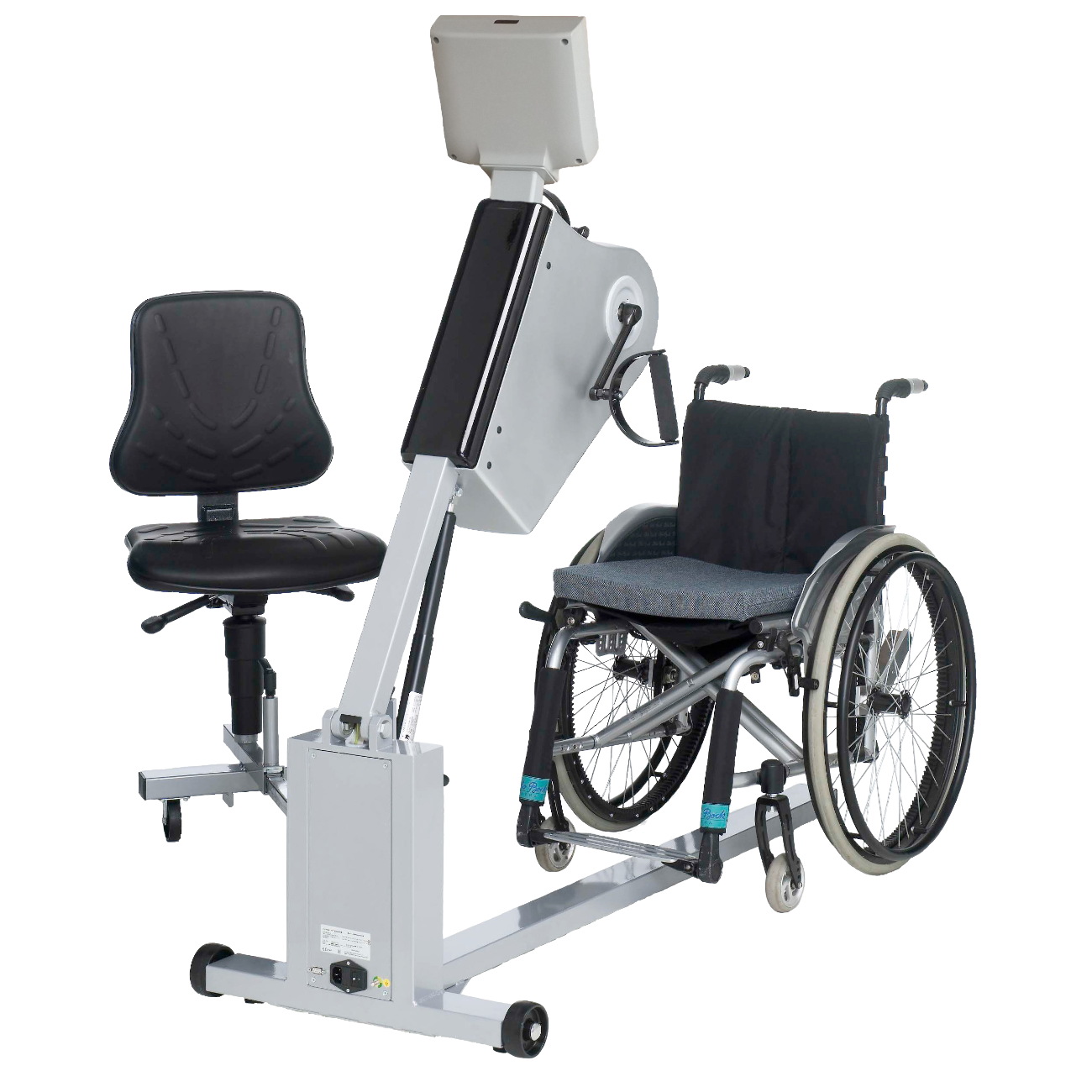

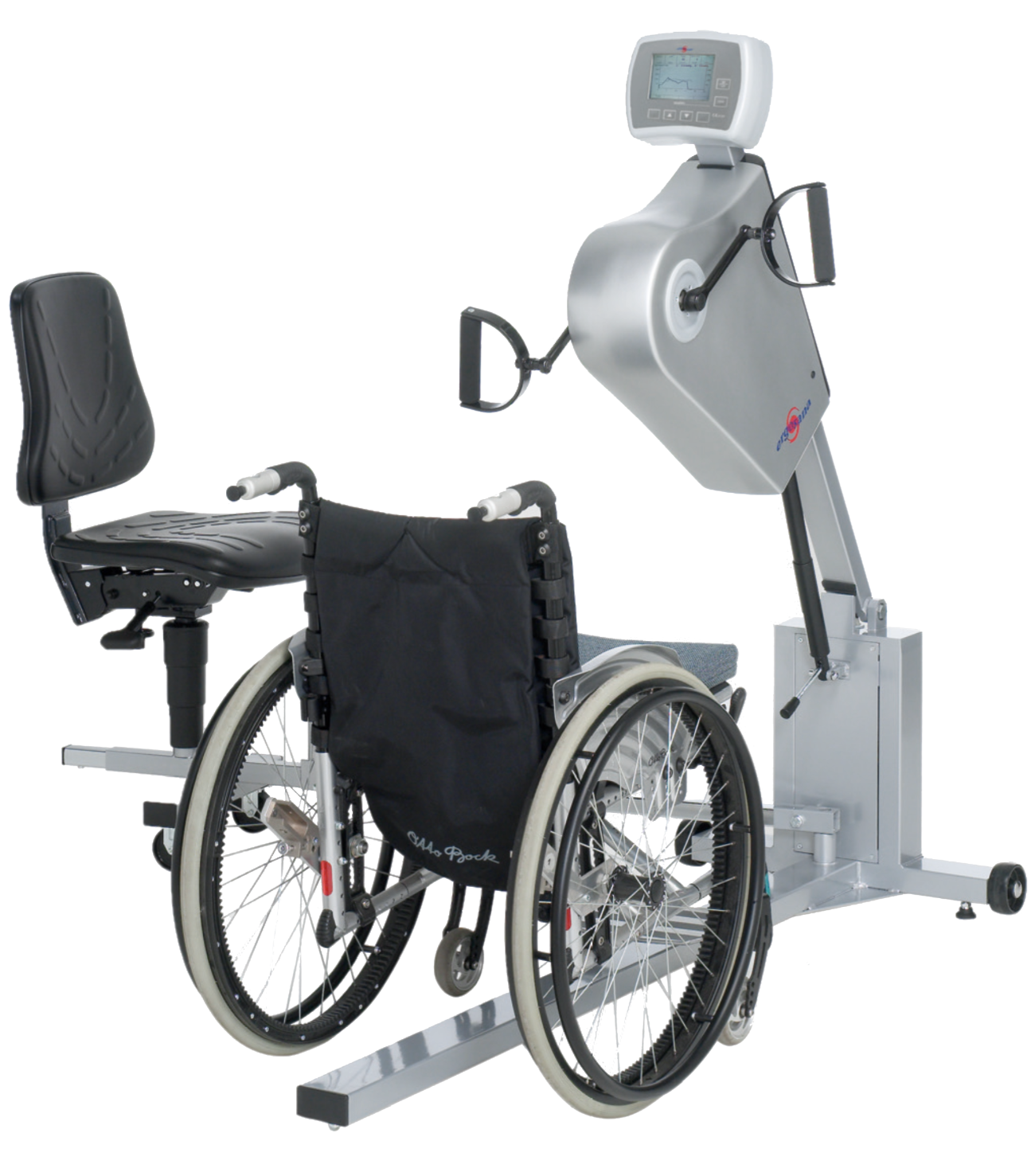

This special device is based on the proven functionality of our ergometers. A pneumatic spring enables the load unit’s easy adjustment to the individual height of every patient. A stable base guarantees maximum stability. The ergonomic handcranks enable a good power transmission during the rotation. The especially designed seat is guided on a rail. On this rail, it can be moved very easily to the best exercising position and fixed. For patients who have to train in a wheelchair, the ergometer can be converted within seconds by using a handle on the seat. As the seat can be easily pushed away, paraplegic patients are not dependent on assistance when transferring from the wheelchair to the seat. They can use the hand ergometer directly from the wheelchair.
Discover the SanaSedeo 1000
Designed to last.
Robust steel construction
Measuring element can be rotated through 180°
Touch Screen Display – Stress data (such as SpO2, HR, RPM) are displayed directly
SpO2-Connector (optional)
Blood pressure measurement with QRS trigger (optional)
Connection via Bluetooth or RS-232 wire
High stability with maximum mobility with wheels
High load accuracy: 20 – 800 W
Easy leveling, small space requirement

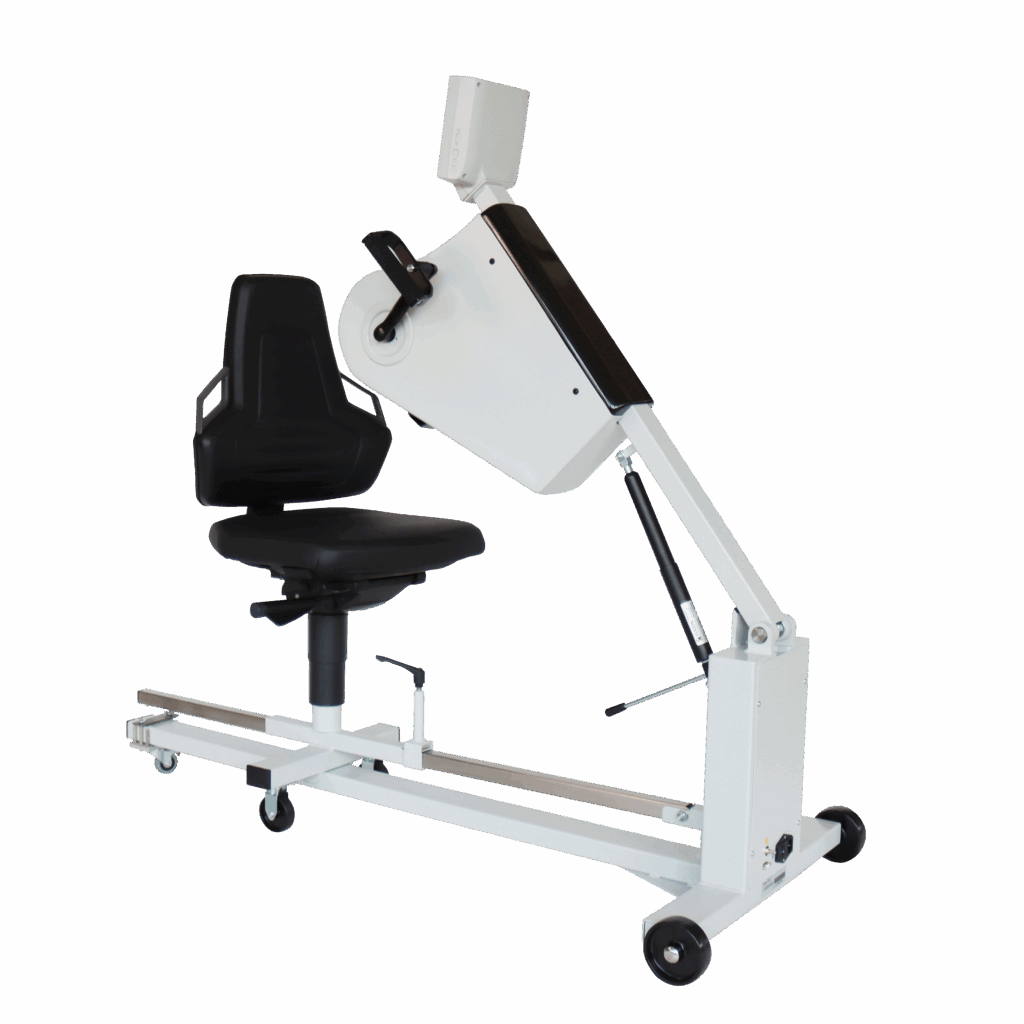

The specially designed seat is guided in a rail what makes it easy to move it lengthways into the
best working position and lock it in place
Special hand cranks
are easy to grip and ensure
good power transmission
during the turning movement
A closer look to the details
Safe & effective training: Pulse-Steady-State
The ERGOSANA “Pulse Steady State” program enables precise performance monitoring. Heart rate is measured via an integrated receiver and a special chest strap. The optional blood pressure monitor measures blood pressure at the leg artery above the ankle. A specific target heart rate range is set. The SanaSedeo 1000 then automatically adjusts the resistance by increasing or decreasing it so that the heart rate remains within this range. This ensures that the patient always trains in the optimal range for their goals, whether fat burning, increasing endurance, or cardiovascular training.
- Effective: Heart works within the desired zone, increasing the training effectiveness
- Safety: Overexertion or undertraining is avoided, which is especially important at health concerns
- Motivation: The system provides feedback, so patients know exactly if they're in the right range
Comfortable loading unit
The speed-independent load is granted by a high-end eddy current brake with computer-controlled torque measurement. This control, together with the ideal centrifugal mass dimensioning, results in a very pleasant pedalling feeling, allowing the patient to fully exploit his or her reserves. The mechanism, consisting of state-of-the art components, runs almost noiseless, even at high speed.
User-friendly control centre
The computer-controlled electronic high-end control centre is situated in the measuring head of the SanaSedeo 1000. The measuring head’s front-side features the control elements and a backlit graphic high-resolution LCD display. Its side, containing the display, is usually oriented towards the person operating the device. This is why an LED speed display is mounted on the head’s upper side, clearly visibile for the patient. If the device is used in the rehabilitation or training sector, the measuring head can easily be turned around to allow view on the display and control unit.
EasyTouch
LCD Display
Features
Comprehensive ergometry for cardiopulmonary diagnostics.
Thanks to the modern computer-controlled electronics of the SanaCouch 1000, all common load controls can be carried out using an external master device. The load can also be changed manually in steps of 5 watts on the touch display.
