HIGH PERFORMANCE ERGOMETER

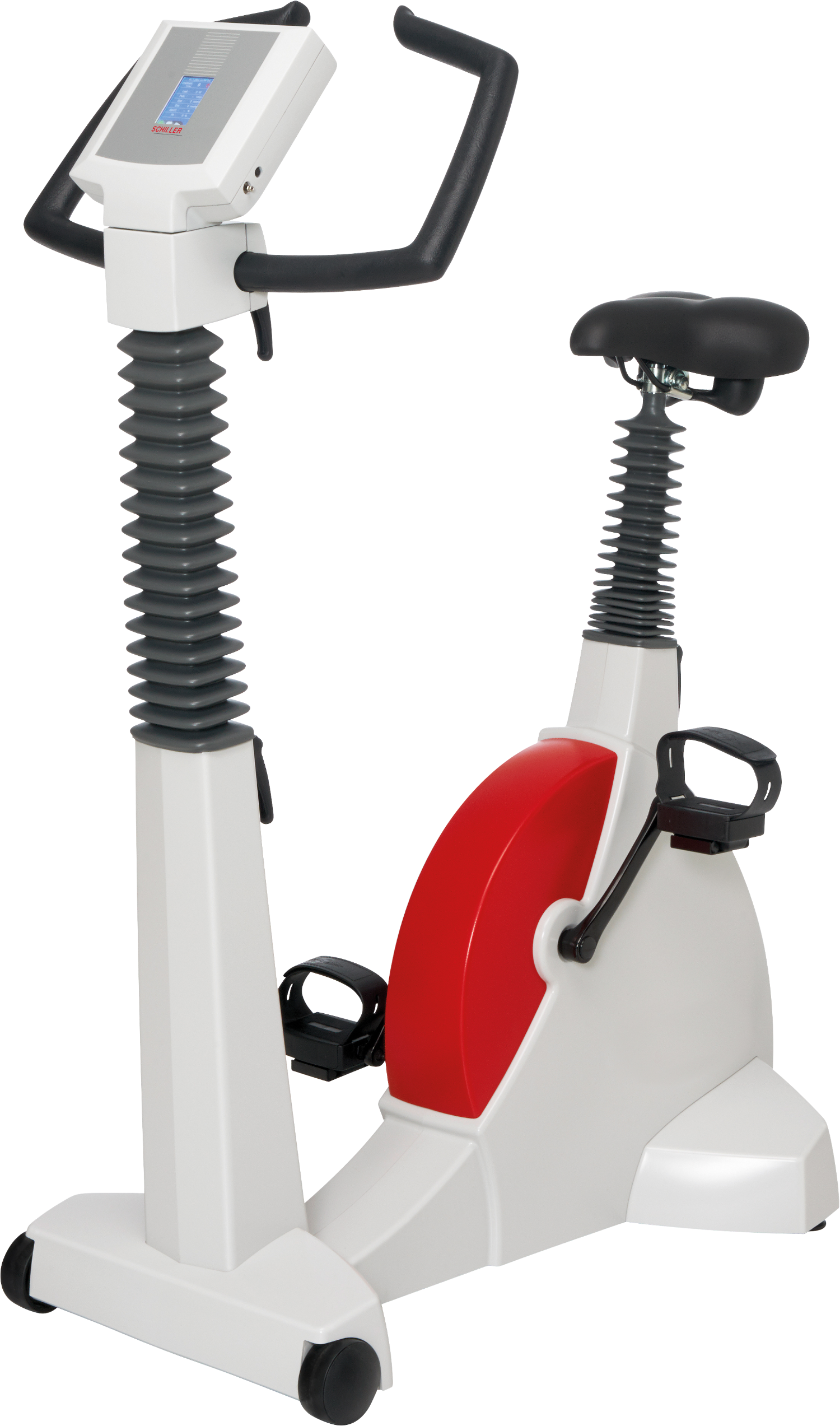

SanaBike 1000

The SanaBike 1000 seated ergometer is a further developed successor to our proven ergometry devices. The design focused on maximum stability, maximum practicality and maximum flexibility. In order to provide the patient with a comfortable pedaling experience, the torque control is combined with the ideal design of the flywheel. The modern transmission works almost silently even at high speeds.

Standard max. weight of 160 kg
Low entry
Almost noiseless, even at high speed
No maintenance

High performance – high professional individualism.

The ergometer was developed for cardiology and, thanks to the many configurable options, is easy to personalize and adapt perfectly to your own needs.

The SanaBike 1000 offers great comfort and many options despite its small footprint and easy operation. It is very similar to our SanaBike 500, but you can adjust both the saddle and the handlebars, which offers patients great comfort. The measuring head with touchscreen is very easy to use and can also be rotated through 180°. There are also many options here, such as blood pressure measurement with a QRS trigger or an SpO2 connection. The load level on this bicycle ergometer is between 20 and 999 watts. The loading accuracy is very high.

Discover the SanaBike 1000

Designed to last.

Robust steel construction

Bicycle measuring element can be rotated through 180°

Touch Screen Display – Stress data (such as SpO2, HR, RPM) are displayed directly

SpO2-Connector (optional)

Blood pressure measurement with QRS trigger (optional)

Connection via Bluetooth or RS-232 wire

Grab handle 360° adjustable with solid grip surface

Saddle height adjustable with QuickLift

Deep entry

High stability with maximum mobility with wheels

High load accuracy: 20 – 999W

Ergonomic saddle with position for heights from 1.40 - 2.10 m

Easy leveling, small space requirement

Quickly height-adjustable handlebars

A closer look to the details

180° measuring head with touch screen

The measuring head can be rotated 180° and supports both remote operation with the master devices PC and ECG and standalone operation via user-defined step protocol and manual load control. All important stress data (blood pressure, heart rate, pedaling frequency, information about correct pedaling frequency) are shown in a compact form on the display. The blood pressure measurement can be conveniently operated via the touch display. Optionally there is also blood pressure measurement with a QRS trigger and an SpO2 connection.

Maximum adjustability

The SanaBike 1000 was developed for maximum adjustability of the sitting and pedaling position. In addition to the height and position of the seat, the height of the handlebars can also be adjusted quickly and easily.

loading_unit_pic_leftmoving1

Comfortable loading unit

A high-quality eddy current brake with permanent computer-aided torque control is used for speed-independent loading. This control, together with an ideal design of the flywheel, results in a very pleasant pedaling feeling, through which the power reserves can be fully exploited. The modern belt drive works almost silently even at high speeds and makes the device maintenance-free. The load range is by standard between 20 and 999 watts. The loading accuracy is very high.

Stable construction, individually configurable.

The stepless adjustment of the saddle and handlebar height allows an optimal sitting position for patients between 1.40 m and 2.10 m tall. The handlebars can also be adjusted horizontally. The saddle height has the option of electrical adjustment. It is also possible for smaller patients from 1.20 m to use a children’s saddle and children’s pedals. The comfortable and deep step-through between the handlebars and saddle is particularly advantageous for older and disabled clients. It can make sense to use saddles with different shapes for different purposes (e.g. lufu examinations for athletes, rehabilitation use, etc.): That is why the saddle post was designed with a standard connection, so that it is possible to retrofit all commercially available saddle models as desired. The sturdy tubular steel and aluminum construction of the ergometer frame and drive unit can easily handle weights of up to 160kg. The SanaBike 1000 is connected via a 230 volt power supply and optionally via a 115 volt power supply.

Advantages

Comprehensive ergometry for cardiopulmonary diagnostics.

Thanks to the modern computer-controlled electronics of the Sana Bike 1000, all common load controls can be carried out using an external master device. The load can also be changed manually in steps of 5 watts on the touch display.
